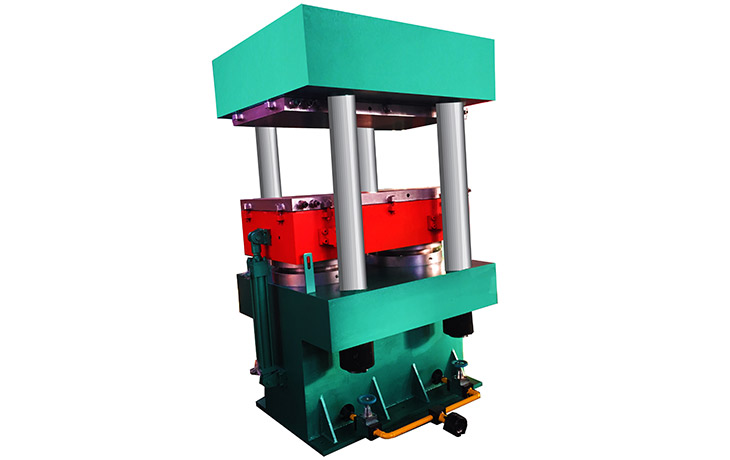

Four column vulcanizing machine

Model product flat vulcanizing machine  Technical parameters / name
perfermance parameters 400X400X2 450X450X2 600X600X2 800X800X2 750X1500X2
Nominal mounding forceMN 0.5 1 1.6 2 3.6
Hot plate specifications（LXW)mm 400X400 450X450 600X600 800X800 750X1500
Hot plate unit pressureMPa 3.125 4.9 4.4 3.125 3.2
Cylinder diametermm 200 300 360 420 360
Number of cylinders 1 1 1 1 2
structure type Column Column Column Column Column
heating method electro-thermal electro-thermal electro-thermal electro-thermal Steam or heat transfer oil



1200X12600X2 Batching label specification(2 sets)
Number Model Name Quantity Material Remarks
1 GB/T799-1998 Anchor bolt M20X500 20 Level 4.8
2 GB/T5780-2000 bolt M12X50 16 Level 4.8
3 GB/T41-2000 screw nut M12 8 Level 5
4 GB/T41-2000 screw nut M20 20 Level 5
5 GB/T95-2002 washer12 24 100HV
6 GB/T95-2002 washer20 20 100HV
7 STO40-50 VT4 45X45U Safety chuck (passive end) 2 Finished product Chaoyang Sanchuang
8 STW40-50 VT4 45X45U+M-8/B(Powered) Safety chuck (active end) 2 Finished product Sprocket pitch 19.05 teeth 42
9 GB/T1243-1997 Chain (12A) 105 saves 2m
 2 Finished product Pitch 19.05
10 TK58-Y2.2-4P-15.22-M1-I-A Spiral bevel gear reducer 2 Finished product Zhejiang Tongli
11 GB/T37-1988 T-bolt M12X60 8 Level 8.8
Fiction:Yang Chengren   Date:Jan.10th 2018    Review:           Date:



1200X12600X2 batcher plus parts details（two sets）
Number Drawing number Name Quantity Material   Remarks
1 TS1802-09-00 Rolling device (left drive) 2 Component
2 TS1711-2-1-00 Stand 2 Weldment
3 TS1711-2-1-1 Bottom plate 2 Q235-A
4 TS1711-2-1-2 Rectangular square tube 4 Q235-A
5 TS1711（左）-2-2-00 Bracket (left drive) 2 Weldment
6 TS1711-2-2-1 Bottom plate 2 Component
7 TS1802-09-01 45 square steel 2 45
8 TS1711-2-3-00 safety cover 2 Q235-A
9 TSG1396-01 Reducer sprocket 2 45
10 TS1415-04-02 T-slot plate 4 Q235-A
Fiction:Yang Chengren  Date: Jan.10th 2018  Reivew:          Date:
